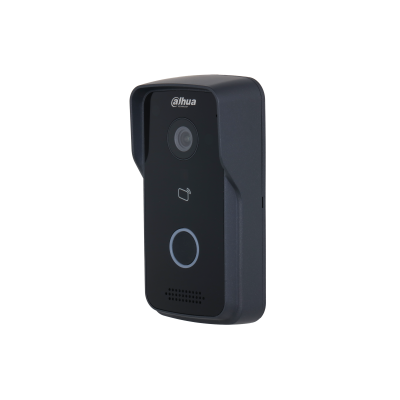

The VTO2111D-P-S3 IP Villa Door Station is a smart and secure video door phone solution designed for villas, homes, offices, and gated properties. Equipped with a 2MP HD camera, IR night vision, app-based remote unlock, and PoE support, it delivers reliable access control with modern IP communication features.
Key Highlights
• 2MP HD Camera with wide-angle viewing
• Two-Way Audio Communication with noise suppression
• Remote Unlock via Mobile App
• Supports PoE Power Supply for simplified installation
• IP65 Weatherproof Protection for outdoor use
• Supports 10,000 IC Cards
• Controls Up to 2 Door Locks
• IR Night Vision for 24/7 monitoring
• ONVIF Compatible for easy integration
• Surface Mount Design with compact form factor
Smart Security & Access Control
• Unlock doors using:
- IC Card
- Indoor Monitor
- Mobile App Remote Access
• Supports communication between:
- App ↔ Door Station
- Indoor Monitor ↔ Door Station
• Built-in tamper alarm enhances security protection
Ideal for villas, gated homes, apartments, offices, and warehouses
Camera & Video Performance
• 2MP CMOS Sensor with low-light performance
• Wide Viewing Angle:
- Horizontal: 107°
- Vertical: 60°
- Diagonal: 122°
• Supports:
- H.264 / H.265 compression
- DWDR
- 3D Noise Reduction
- Auto IR illumination
• Video resolutions supported:
Delivers clear visitor monitoring during both day and night
Audio & Communication
• Built-in speaker and microphone
• Full duplex two-way communication
• Echo suppression and digital noise reduction
• Supports G.711a, G.711u, PCM audio compression
Clear voice communication without distortion or echo
Night Vision & Outdoor Reliability
• Automatic IR illumination for night monitoring
• Day/Night modes:
- Auto (ICR)
- Color
- Black & White
• IP65 Rated weather-resistant body
• IK04 impact protection
Reliable performance in rain, dust, and outdoor environments
Access & Card Features
• Supports up to 10,000 IC cards
• Card reading distance: 0–4.5 cm
• Local card issuing supported
Perfect for high-user residential and commercial setups
Connectivity & Integration
• Standard PoE support
• 10/100 Mbps network port
• Supports:
- ONVIF
- SIP
- RTSP
- TCP/IP
- P2P
- CGI
• Compatible with management platforms and indoor monitors
Flexible integration into modern IP surveillance and access systems
Build & Installation
• Surface mount installation
• Material: PC + Acrylic
• Color: Black
• Compact dimensions:
135.1 × 70.6 × 34.6 mm
Included accessories:
• Rain cover
• Brackets
• Alarm power ribbon cable
What’s Included
• VTO2111D-P-S3 Door Station
• Rain Cover
• Mounting Bracket
• Alarm Power Ribbon Cable
• Installation Accessories
