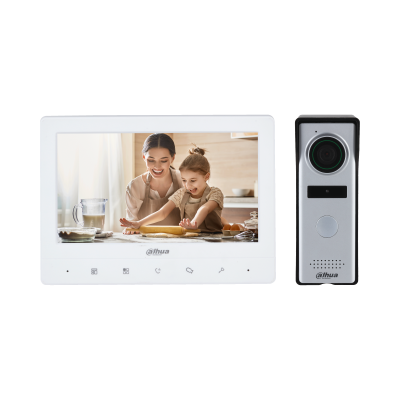

The KTA03 Video Intercom KIT is a smart and reliable analog video door phone solution designed for homes, apartments, villas, and offices. Featuring a 7-inch TFT indoor monitor, HD outdoor camera unit, remote unlocking, video calling, and doorway monitoring, it delivers enhanced security and convenient visitor management.
Key Highlights
• 7-inch TFT Indoor Monitor with 1024 × 600 resolution
• Video Intercom Functions: Video call, voice call, remote unlock & monitoring
• HD Outdoor Door Station with 1.3MP CMOS Camera
• Supports DWDR for improved image clarity in difficult lighting
• IR Night Vision with automatic day/night switching
• Snapshot Function to capture visitor images
• System Capacity: Supports 2 Door Stations + 3 Indoor Monitors
• IP66 Rated Outdoor Unit for weather resistance
• Touch Keypad Indoor Monitor for easy operation
Smart Security & Communication
• Real-time two-way audio communication with visitors
• Monitor entrances instantly through the indoor display
• Remote door unlocking directly from indoor monitor
• Multiple ringtone options for personalized alerts
• Snapshot capture helps maintain visitor records
Perfect for improving residential and office entrance security
Indoor Monitor – DHI-VTH1020J-T
Display & Controls
• 7-inch TFT Display
• Resolution: 1024 × 600
• Touch keypad operation
• Green LED power indicator
Features
• Voice Call & Video Call
• Doorway Monitoring
• Volume Adjustment
• Snapshot Capture
Build & Installation
• PC + ABS body
• Surface mount installation
• White color finish
Power & Consumption
• DC 12V/2A adapter included
• Standby Power: ≤ 2W
• Working Power: ≤ 5W
Dimensions & Weight
• Dimensions: 133.9 × 182.7 × 17.7 mm
• Net Weight: 0.25 kg
Outdoor Door Station – DHI-VTO1000J
Camera & Imaging
• 1/4-inch 1.3MP CMOS Camera
• Horizontal Viewing Angle: 70°
• Vertical Viewing Angle: 40°
• DWDR Support
• Auto IR Night Vision
• ICR Auto Day/Night Switching
Audio Features
• Built-in microphone & speaker
• Pickup distance up to 0.5m
Security & Access
• Remote Unlock Support
• Door Status Detection
• Mechanical Call Button
Durability
• IP66 Weatherproof Protection
• Surface mount design
• Rain cover included
Power & Consumption
• Powered directly from indoor monitor
• Standby Power: ≤ 1W
• Working Power: ≤ 3W
Dimensions & Weight
• Dimensions: 131.45 × 46 × 33.8 mm
• Net Weight: 0.18 kg
Ideal For
• Homes & Villas
• Apartments
• Offices
• Small Commercial Spaces
• Residential Security Installations
What’s Included
• DHI-VTH1020J-T Indoor Monitor
• DHI-VTO1000J Outdoor Door Station
• Power Adapter
• Mounting Bracket
• Rain Cover
• Installation Accessories
