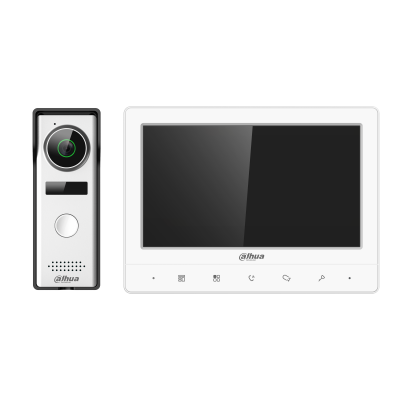

The KTA02 Video Intercom Kit is a complete analog video door phone solution designed for homes, villas, apartments, and small offices. Featuring a 7-inch indoor TFT monitor and a weatherproof outdoor station with 1.3MP camera support, it provides secure communication, visitor monitoring, and remote door unlocking.
Key Highlights
• 7-inch TFT Indoor Monitor with 1024 × 600 resolution
• 1.3MP Outdoor Camera with clear visitor monitoring
• Video Intercom Functions: Video call, voice call, unlock, volume adjustment
• Supports 2 Door Stations + 3 Indoor Monitors
• DWDR Technology for improved image clarity in challenging lighting
• IR Night Vision with automatic day/night switching
• IP66 Rated Outdoor Unit for weather resistance
• Touch Button Indoor Monitor with sleek modern design
• Surface Mount Installation for easy deployment
Smart Communication & Security Features
• Real-time two-way audio communication between indoor and outdoor units
• Supports video monitoring and remote door unlocking
• Multiple bell tones for customized alerts
• Digital Wide Dynamic Range (DWDR) improves visibility in bright and dark areas
• Integrated IR illumination enables visibility during nighttime
Ideal for residential security and visitor management
Indoor Monitor – VTH1020J
Display & Interface
• 7-inch TFT Display
• Resolution: 1024 × 600
• Touch button interface
• Power status LED indicator
Features
• Video call and voice communication
• Volume adjustment
• Door unlock support
• Analog communication mode
Design & Build
• Compact white finish
• PC + ABS housing
• Surface mount installation
Power & Consumption
• Power Supply: DC 12V/1A
• Standby Consumption: ≤ 2W
• Working Consumption: ≤ 5W
Dimensions
• 133.9 × 182.7 × 17.7 mm
Outdoor Door Station – VTO1000J
Camera Features
• 1.3MP CMOS Camera
• Viewing Angle:
- Horizontal: 70°
- Vertical: 40°
• Auto IR illumination
• ICR day/night auto switch
Audio Features
• Built-in microphone and speaker
• Pickup distance up to 0.5m
• Clear two-way communication
Security & Access
• Local door unlock support
• Door status detection
• Exit button connection
Protection & Durability
• IP66 Weatherproof Rating
• Surface mount installation
• Rain cover included
Power & Consumption
• Powered directly by indoor monitor
• Standby Consumption: ≤ 1W
• Working Consumption: ≤ 3W
Dimensions
• 131.45 × 46 × 33.8 mm
System Capacity
• Supports up to:
- 2 Door Stations
- 3 Indoor Monitors
Suitable for multi-room residential setups or small office deployments
Environmental Specifications
Indoor Monitor
• Operating Temperature: -10°C to +55°C
• Humidity: 10%RH to 95%RH
Outdoor Station
• Operating Temperature: -30°C to +60°C
• Humidity: 10%RH to 95%RH
What’s Included
• VTH1020J Indoor Monitor
• VTO1000J Outdoor Door Station
• Power Adapter
• Mounting Bracket
• Rain Cover
• Installation Accessories
