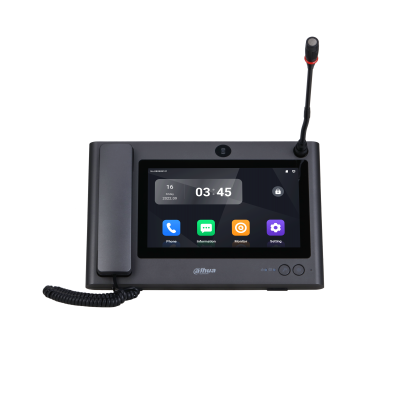

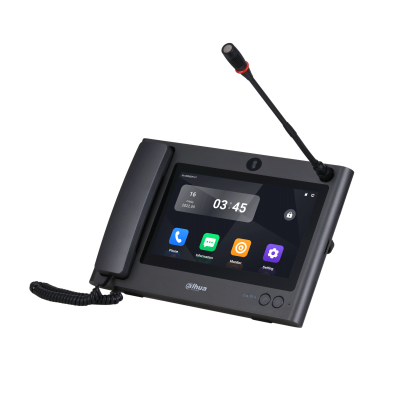

The Dahua DHI-VTS8340B-CG Master Station is a powerful central control unit for advanced video intercom systems.
With a large 10-inch touchscreen, multi-channel monitoring, and flexible communication modes, it is ideal for command centers, security desks, and enterprise environments.
Key Highlights
• 10-inch capacitive touchscreen with HD display
• Supports 4-channel 720P video monitoring (split screen)
• Multiple audio modes: handsfree, handset, gooseneck mic
• Built-in camera for video communication
• HDMI output support
• Micro SD storage for recording and snapshots
Display & Interface
• 10-inch TFT Capacitive Screen
• Resolution: 1024 × 600
• Smooth and responsive UI
Designed for professional monitoring and control
Video Monitoring & Performance
• Supports 4-channel 720P video display (split screen)
• Built-in 5MP CMOS camera
• H.264 video compression
• Real-time monitoring with 25fps frame rate
Perfect for centralized security monitoring systems
As shown in the datasheet (page 1), the system can display four video feeds simultaneously for efficient surveillance.
Audio & Communication
• Two-way voice communication
• Audio modes:
- Handsfree
- Handset
- Gooseneck microphone
• Echo suppression and noise reduction
Flexible communication for different operational setups
Connectivity & Integration
• Network: RJ-45 (10/100/1000 Mbps adaptive)
• Protocols: TCP, UDP, RTP, RTSP, IPv4
• HDMI output for external display
• Web configuration supported
Easily integrates into enterprise-level systems
Storage & Recording
• Supports Micro SD card (up to 64GB)
• Local storage for:
- Video recordings
- Snapshots
Ensures data backup and evidence storage
Smart Features
• Full digital communication system
• Split-screen monitoring
• Real-time video interaction
• Centralized control for multiple devices
Ideal for control rooms and large setups
Build Quality & Installation
• Durable PC + ABS casing
• Desk-mounted design (no wall installation required)
• Adjustable bracket angle (0°–45°)
Built for professional environments
What’s Included
• Master Station Unit
• Power Adapter
• User Guide
