The Dahua DHI-KTP02L IP Video Door Phone Kit is a complete smart villa intercom solution designed for homes, villas, and premium residential spaces. It combines a high-definition outdoor door station with a 7-inch indoor monitor, offering remote unlocking, two-way communication, PoE support, and app connectivity for modern security and convenience.
Key Highlights

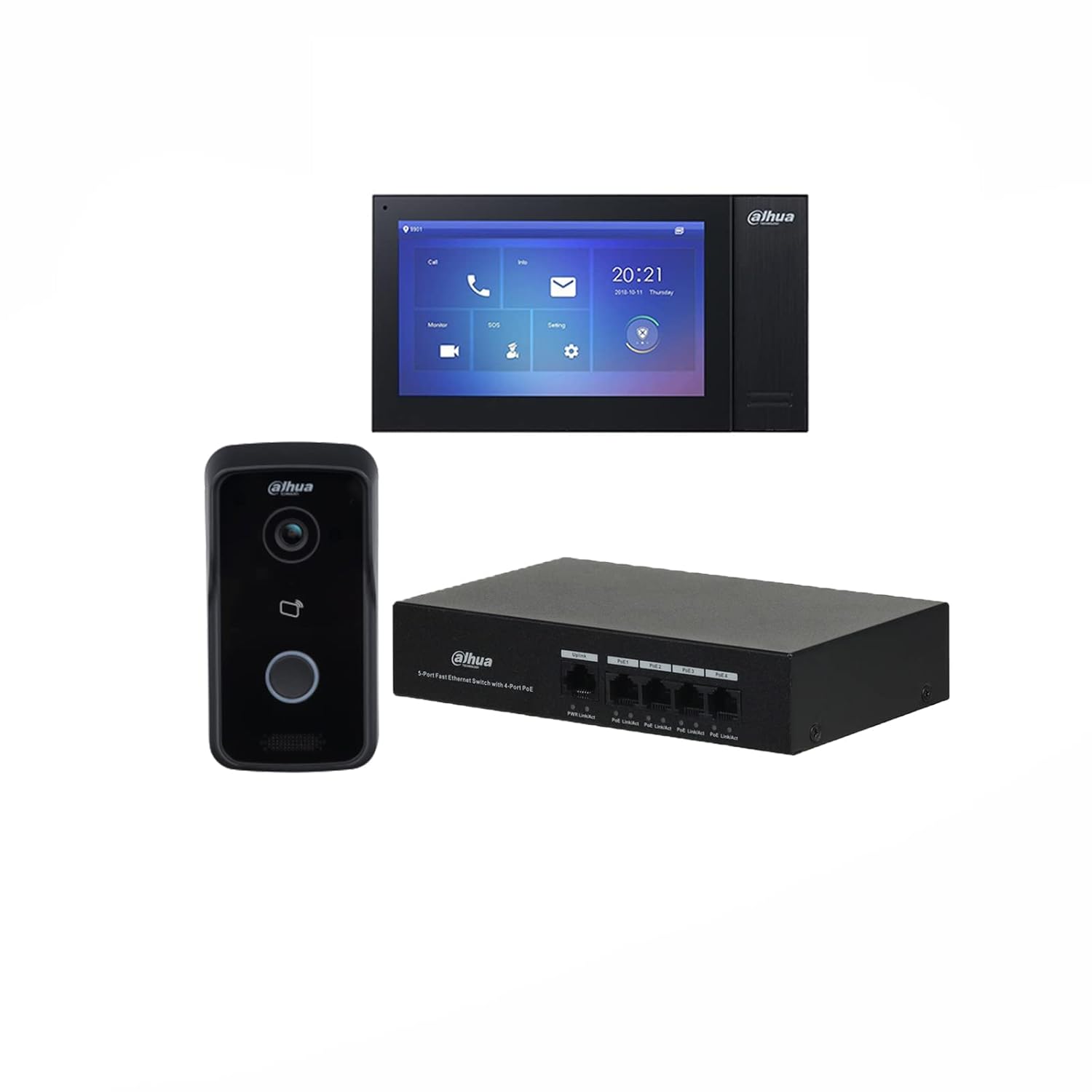

• Complete IP Video Door Phone Kit with Outdoor Door Station + 7-inch Indoor Monitor
• 2MP HD Camera with WDR for clear video in day and night conditions
• Multiple Unlock Methods: Card, Mobile App, Indoor Monitor
• Supports Two-Way Audio Communication between monitor, door station, and mobile app
• PoE Support for simplified installation and reduced wiring
• 10,000 Card Capacity for large user access management
• IP65 Rated Outdoor Unit for weather resistance
• Built-in IR Night Vision with automatic Day/Night switching
• Supports Dual Lock Control with DEE1010B module
• Embedded Linux OS for stable and reliable performance
Smart Security & Access Control
• Remote Unlocking via mobile app, indoor monitor, or RFID card
• Supports 10,000 IC Cards for secure access management
• Tamper Alarm Protection for enhanced security
• Door Status Detection support for monitoring lock condition
• Supports Two Locks with optional DEE1010B module
Ideal for villas, apartments, offices, and gated properties
Camera & Video Features
Outdoor Door Station – DHI-VTO2111D-P-S2
• 2MP CMOS HD Camera with low-light support
• Wide Dynamic Range (WDR) for balanced image quality
• IR Night Vision with automatic ICR Day/Night switching
• Viewing Angle:
- Horizontal: 107°
- Vertical: 61°
- Diagonal: 122°
• Video Compression: H.264
• Resolution Support: WVGA, 720P, D1, 1080P
Clear visitor visibility even in challenging lighting conditions
Indoor Monitor Features
Indoor Monitor – DHI-VTH2421FB-P
• 7-inch Capacitive Touch TFT Display
• 1024 × 600 Resolution
• Embedded 8GB SD Card included
• Supports IPC Surveillance Integration
• Alarm Integration Support
• DND Mode with scheduling support
• Supports up to 9 Sub Stations
Centralized control for communication and monitoring
Audio & Communication
• Full Duplex Two-Way Audio
• Noise Reduction & Echo Cancellation
• Built-in Speaker & Microphone
• Supports Calls Between Door Station and Mobile App
Clear communication with visitors from anywhere
Connectivity & Networking
• Standard PoE Support for easy deployment
• 10/100 Mbps Ethernet Port
• Protocols Supported: SIP, P2P, IPv4, RTSP, RTP, TCP, UDP
• ONVIF Compatible
Flexible integration with modern IP surveillance systems
Build Quality & Durability
Outdoor Door Station
• IP65 Rated weather-resistant body
• Operating Temperature: -30°C to +60°C
• Surface Mount Design
• PC + Acrylic Housing
Indoor Monitor
• Slim Premium Design
• Operating Temperature: -10°C to +55°C
• PC + ABS Construction
Reliable operation across harsh environmental conditions
What’s Included
• Dahua DHI-VTO2111D-P-S2 Villa Door Station
• Dahua DHI-VTH2421FB-P Indoor Monitor
• Mounting Brackets
• Alarm Ribbon Cable
• Quick Start Guide
